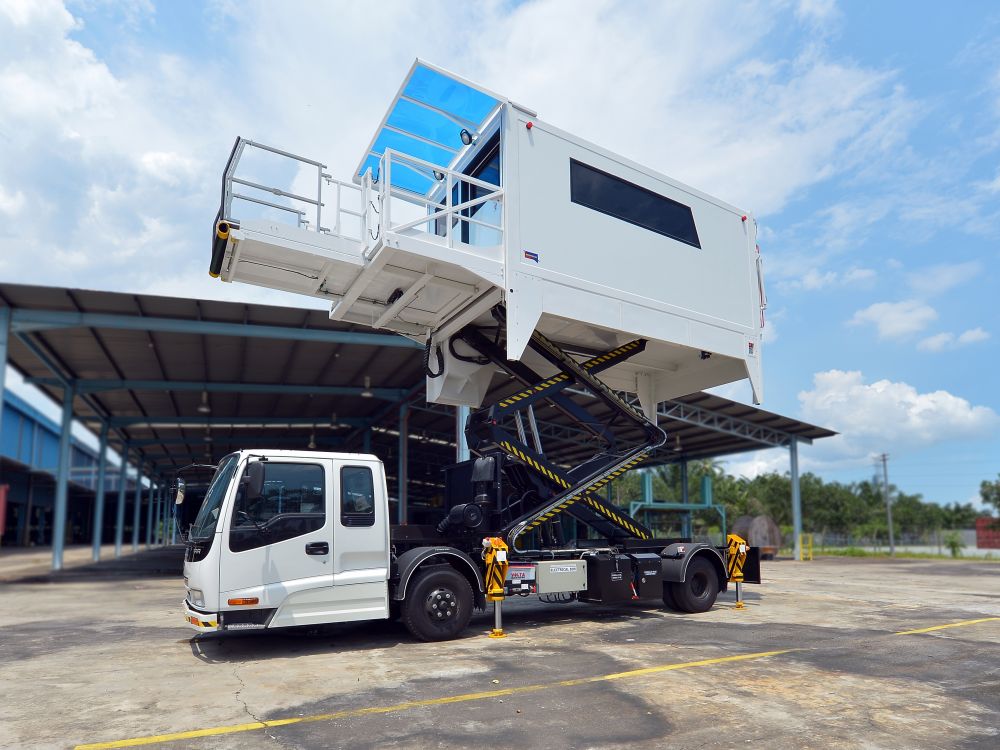

Medical Hi-Lift
|
Servicing Height |
|
| Platform minimum height | 2,200mm +/- 50mm |
| Platform maximum height | 5,800mm +/- 50mm |
| Payload | 1,000kg |
| Van Body Dimensions (External) | |
| Length | 5,500mm |
| Width | 2,500mm |
| Height | 2,250mm |
| Material | 100mm reinforced composite FRP/PU/FRP |
| Chassis | |
| Brand | Volvo, Isuzu, Mercedes, MAN, HINO |
| GVW | 10 - 12 tonnes |
Softcopy catalogue download link: https://drive.google.com/file/d/0B8n0xoc0JJhzVEZWMXR2emNrZnM/view?usp=sharing
Specifications can be tailored upon request.
Contact AeroMobiles for more details.
